Through hard research and development for many years, the product 99% AL2O3 bullet-proof ceramic with high performance had been successfully putted into mass production. This product is mainly applied in two fields--- body protection and vehicle protection. Taking high purity α- Al2O3 powder as raw material, it is shaped by large-tonnage and two-sided pressing machine, and fired in computer-controlled ultra-temperature kiln. The product has these advantages：high hardness, moderate bulk density, strong impact resistance and high-performance of bulletproof. The bulletproof vests using the bulletproof ceramics of our company have reached the standard NIJ -0104.06 and passed the grade IIIV bullet-test held by National Bulletproof Equipment Testing Center.
Through many years’ research, we can produce large whole bulletproof plate now. It has improved the bullet-proof performance greatly since the leaky joint formed by cobbling small ones couldn’t resist the bullet, while the whole plate solved the problem above effectively.
Plane Dimensions (mm) | 50*50 Arc | 50*50 Flat Plate | Opposite Side 95 Hexagon | Opposite Side 36 Hexagon | Opposite Side 30 Hexagon | 295*245 Arc Plate |
Thickness (mm) | 6-12 | 6-12 | 5-15 | 5-15 | 5-15 | 6-12 |
Performance
AI2O3(%) | Bulk Density | Absorption | Hardness (HRA) | Bending strength | Compressive strength | Fracture toughness (Mpa.m1/2) |
≥99 | ≥3.85 | 0.05 | ≥86 | ≥340 | ≥3300 | 2.5 |
We will contact you as soon as possible!

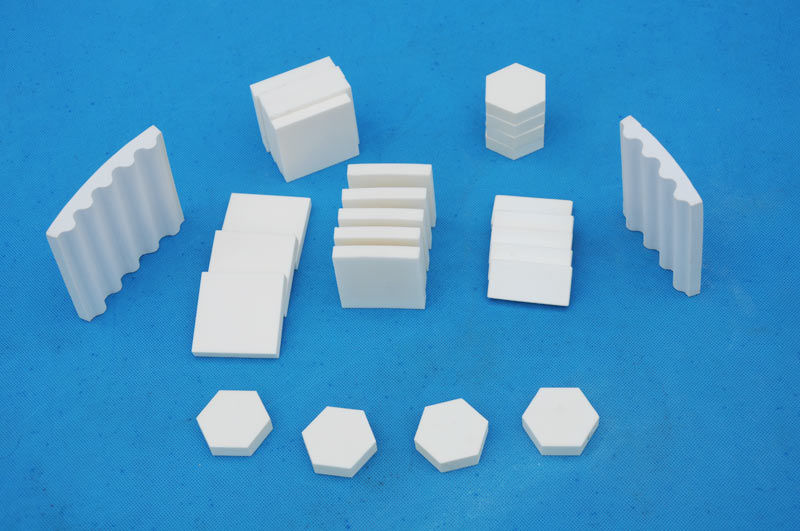

Alumina Bullet-Proof Ceramic
Submit your demand,
we will contact you ASAP.
Sanxin New Materials Co., Ltd. focus on producing and selling ceramic beads and parts such as grinding media, blasting beads, bearing ball, structure part, ceramic wear-resistant liners, Nanoparticles Nano Powder
