ISO pressed alumina pipe is an extremely dense ceramic material that has excellent resistance to both sliding and impact abrasion.
Mainly used as lining materials for applications like coal conveying in power stations,
slag conveying pipelines, material conveying for mines an docks,
cement powder selecting equipment and crushing equipment for fine ceramic materials.
They are featured by high wear resistance and easy for installation.
ISO pressed alumina pipe (ACT) is an extremely dense ceramic material that has excellent resistance to both sliding and impact abrasion. Mainly used as lining materials for applications like coal conveying in power stations, slag conveying pipelines, material conveying for mines an docks, cement powder selecting equipment and crushing equipment for fine ceramic materials. They are featured by high wear resistance and easy for installation.
Technical Data | ACT-92 | ACT-95 |
Al2O3% | ≥92 | ≥95 |
Fe2O3% | ≤0.2 | ≤0.2 |
Mohs Hardness | ≥9 | ≥9 |
Water Absorption(%) | ≤0.02 | ≤0.02 |
Density (g/cm3) | ≥3.60 | ≥3.70 |
Dimension of Alumina Tube
OD(mm) | ID(mm) | Length(mm) |
20-760 | 10-700 | <600 |
Wear resistant alumina ceramic tubes (ACT) are developed for conveying all kinds of hard materials. Big ceramic tubes are of big size, complicated shape, difficult sintering, little gap, good bulk property, easy installation and long service life.
Application
Power Generation
Steel Making Blast Furnace
Cement
Coal Preparation
Mining &Mineral Processing

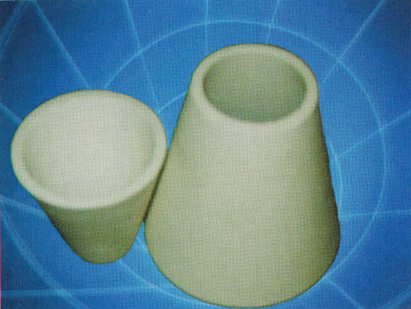

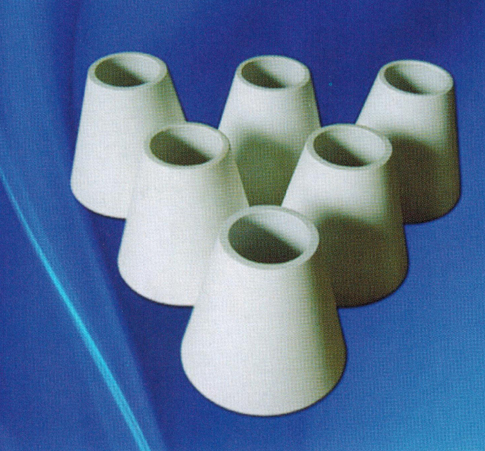

Cone Tube |

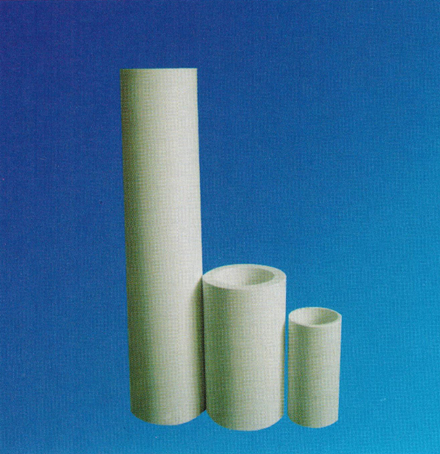

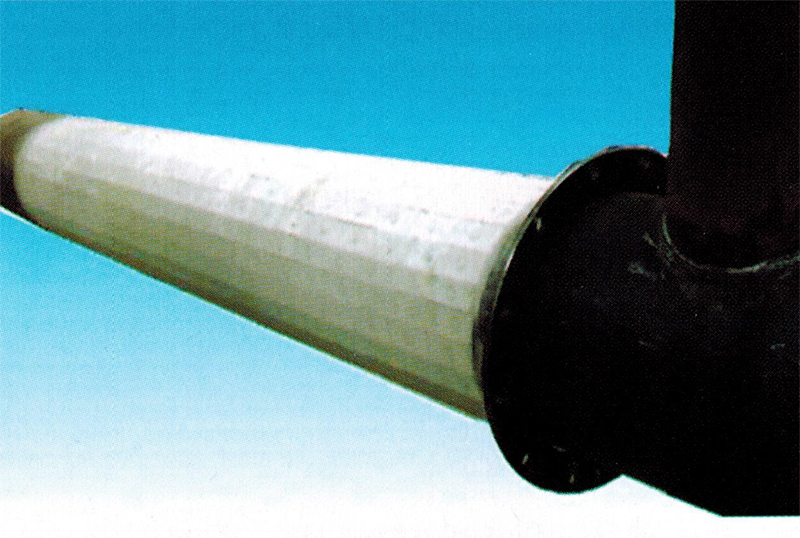

Straight Tube |
Wear resistant alumina ceramic tubes (ACT) are developed for conveying all kinds of hard materials. Big ceramic tubes are of big size, complicated shape, difficult sintering, little gap, good bulk property, easy installation and long service life.

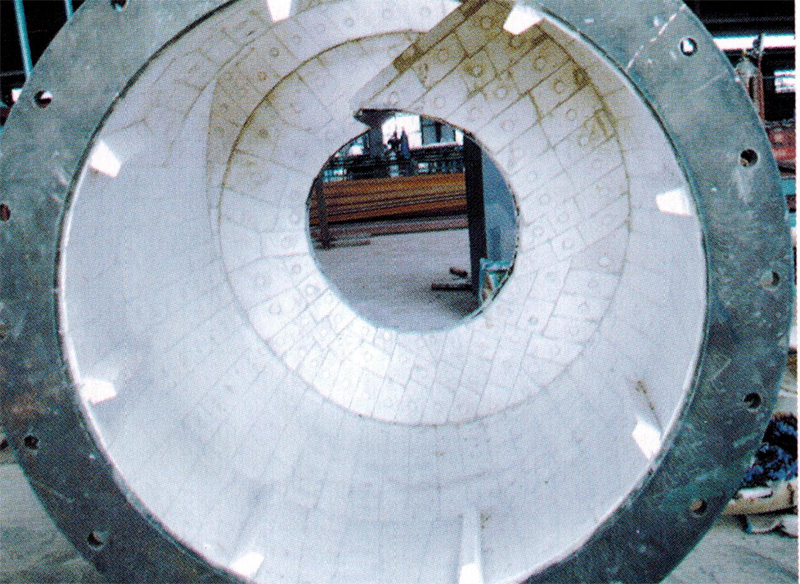

Big Size Tube |

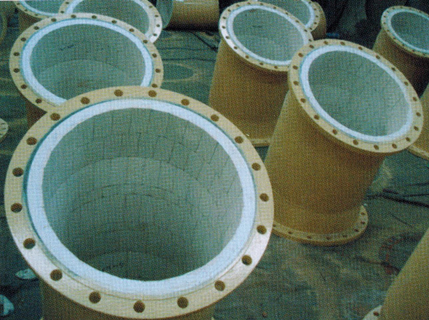

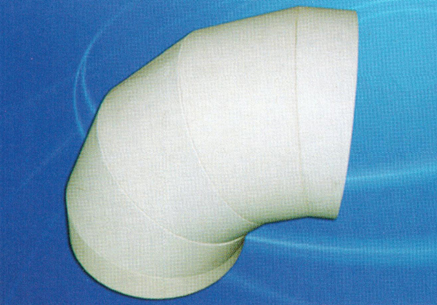

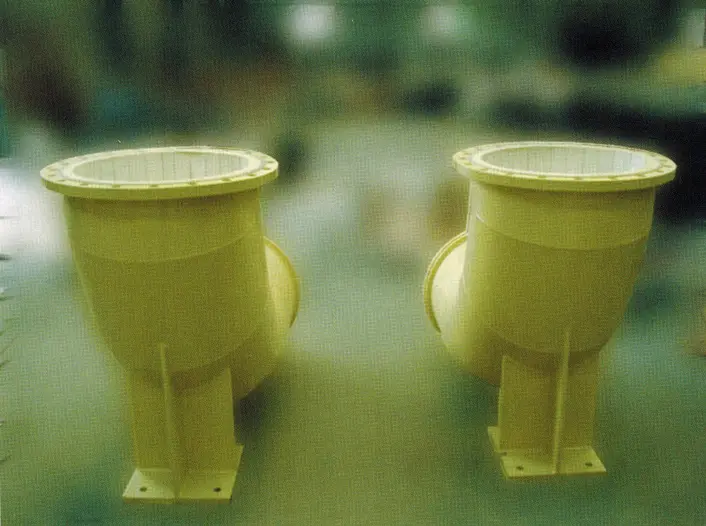

Bend/Elbow |

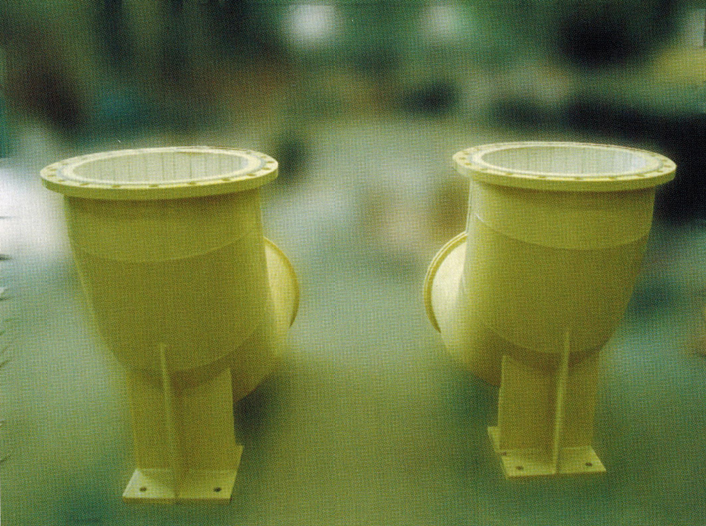

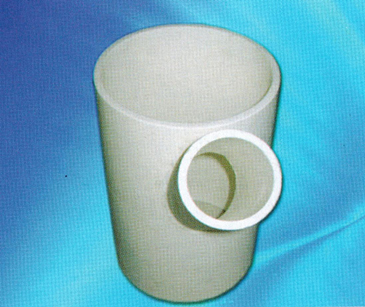

T-Tube |
Application
System | Application |
Power Generation | |
Coal-Conveying System
| coal-conveying pipeline belt joint hopper coal hopper raw coal hopper coal feeder |
Coal Pulverizing System
| coal mill drum chute and hopper lining outlet pipeline primary air pipe and elblow pulverized coal pipe and elbow burner pipeline |
Dust Removing System | dust removing pipe and elbow |
Dust Disposing System | fine fly ash pipe slag removal dry ash pipe |
Mining &Mineral Processing
| |
Material Conveying System | concentrate pipeline tailing pipeline backfill mineral |
Grinding System | chute and hopper lining outlet pipeline |
Mineral Processing System | Vibrating chute cyclone centrifugal dehydrator |
Steel Making Blast Furnace
| |
Material Conveying System | hopper bunker lining |
Compounding Ingredients System | mixing bin primary mixing drum secondary mixing drum |
Sintered Materials Conveying System | mineral processing hopper under vibrating screen long distance mineral processing hopper and bunker |
Dust Removal and Discharge System | dust removing pipe dust collecting pipe machine tail dust removing pipe |
Cement
| |
Limestone crushing and raw fuel preblending system | chute hopper |
Raw fuel grinding, homogenization and storage system | vertical mill feed chute vertical mill air-intake lining board vertical mill scraper plate separator cyclone fan impeller and shell mill outlet elbow and expansion joint |
Firing System | tertiary air duct elbow of the inlet or outlet of humidifier tower elbow from grate cooler to electrostatic precipitator kiln head electrostatic precipitator tail air pipe elbow discharge |
Cement grinding system | vertical mill feed chute mill outlet elbow and expansion joint |
Coal Preparation
| |
Conveying System | medium conveying pipeline coal washer equipments feeding pipeline Non-pressure gravity flow pipeline coal washer conveying pipeline |
Mining Equipment | horizontal screen bowl centrifuge horizontal vibratory screen centrifuge horizontal coal slurry scroll screen centrifuge Cyclone |

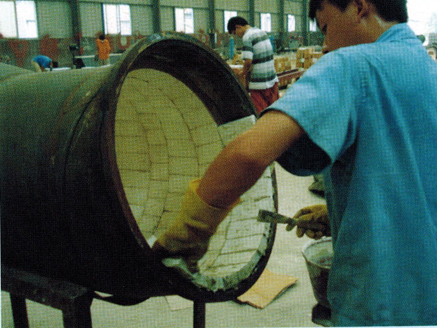

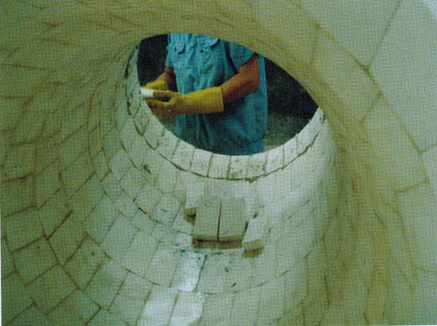

Lined by hand
|
|

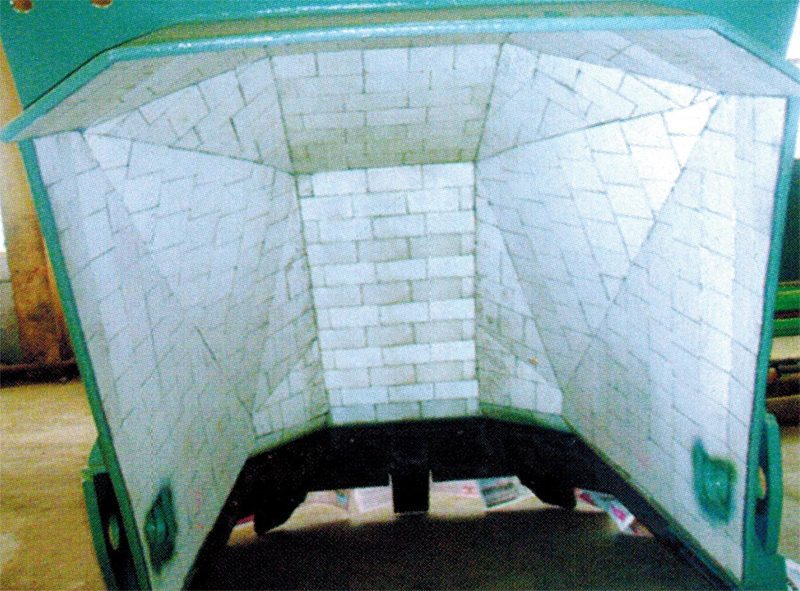

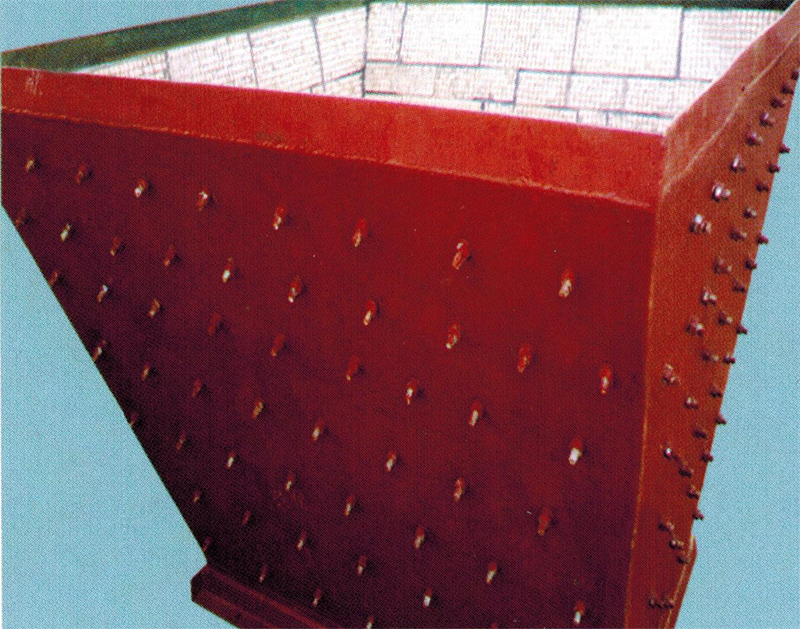

Finished Production
|
|

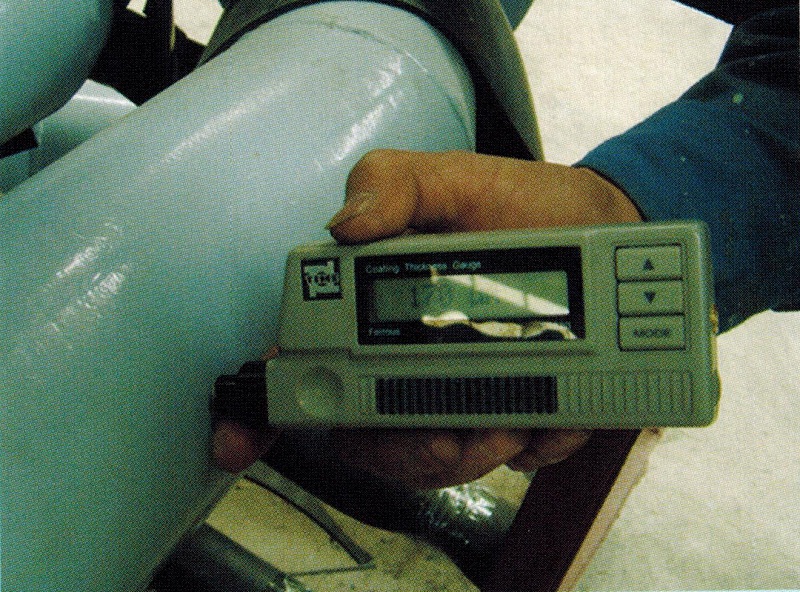

QC

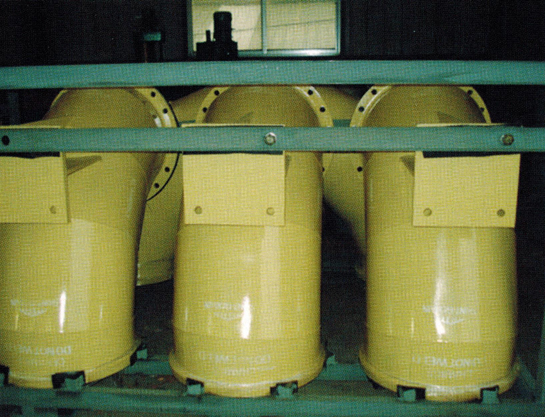

| Package
|
