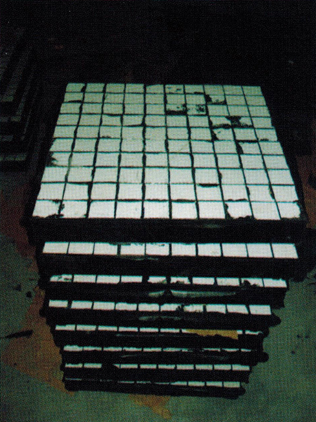

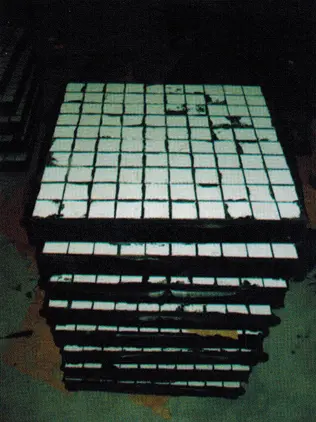

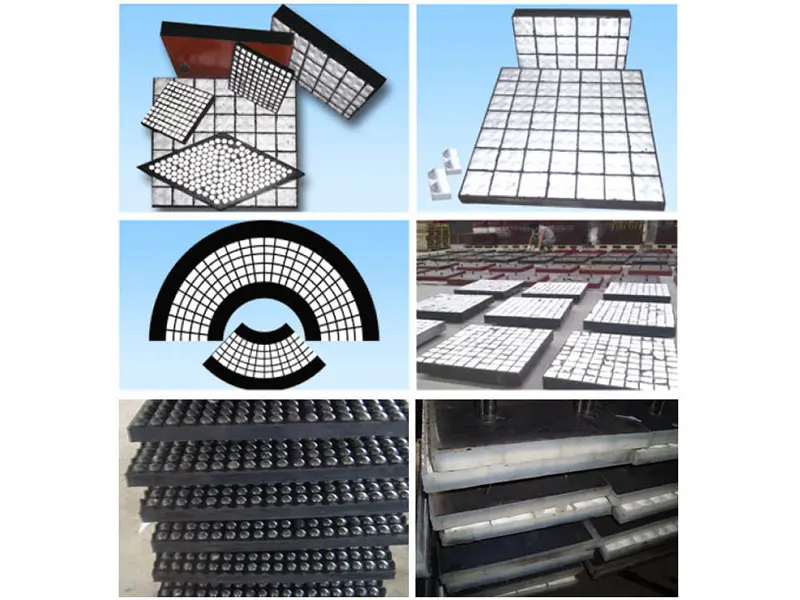

Ceramic Rubber Liner (CRL) is compounded by rubber sheet,
flat or spherical ceramic tiles and steel plate through hot vulcanizing process.
It is fixed to equipment surface by means of bolts connection.

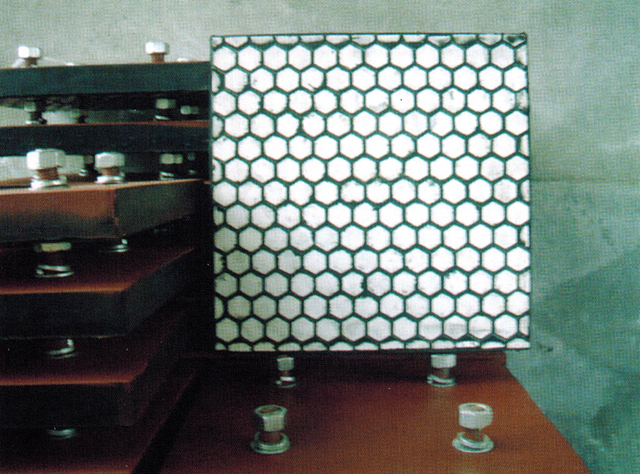

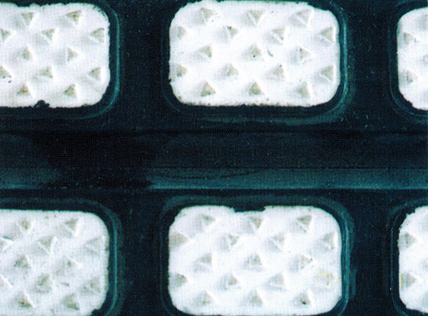

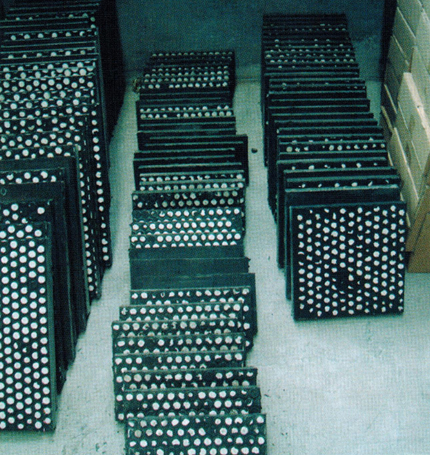

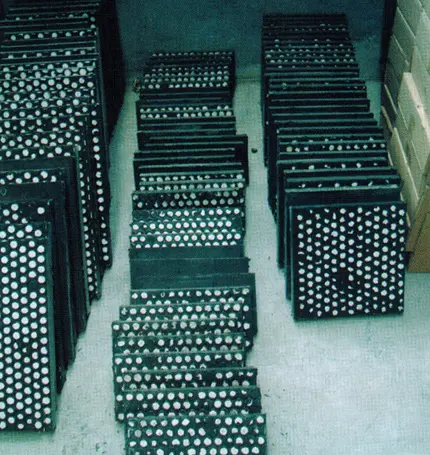

There are two types of ceramic surface: flat and spherical.
Ceramic Rubber Liner is high wearable, high cut-resistant, and super impact-resistant.
It is magically suitable under condition of systems conveying lower burning point materials,
and outstanding feature of powerful impact.
Ceramic Rubber Liner (CRL) is compounded by rubber sheet, flat or spherical ceramic tiles and steel plate through hot vulcanizing process. It is fixed to equipment surface by means of bolts connection. There are two types of ceramic surface: flat and spherical. Ceramic Rubber Liner is high wearable, high cut-resistant, and super impact-resistant. It is magically suitable under condition of systems conveying lower burning point materials, and outstanding feature of powerful impact.
Rubber Spec. | Index |
Tensile strength (MPa) | ≥12 |
Tensile elongation(%) | ≥250 |
Shore hardness | 55-65 |
Bond strength of rubber and ceramic (Shear modulus)(Mpa) | ≥3.5 |
Temperature range | ≤100℃ |
Aging time(years) | ≥5 |
ceramic Technical Data | CRL-92 | CRL-95 |
Al2O3% | ≥92 | ≥95 |
Fe2O3% | ≤0.2 | ≤0.2 |
Mohs Hardness | ≥9 | ≥9 |
Water Absorption(%) | ≤0.02 | ≤0.02 |
Density (g/cm3) | ≥3.60 | ≥3.70 |
Size:
302×302×32mm,500×500×60,500×500×20mm
Other size can be according the customer design.
|
|
|
|
|
|
|
