Density: 3.7~6 g/cm³
Rockwell Hardness (HRA): ≥85
Vicker Hardness (Hv10): ≥1100
Bending Strength: 300~800 MPa
Compressive Strength: 1200~3000 MPa
Wear Ability: ≤0.03 cm³

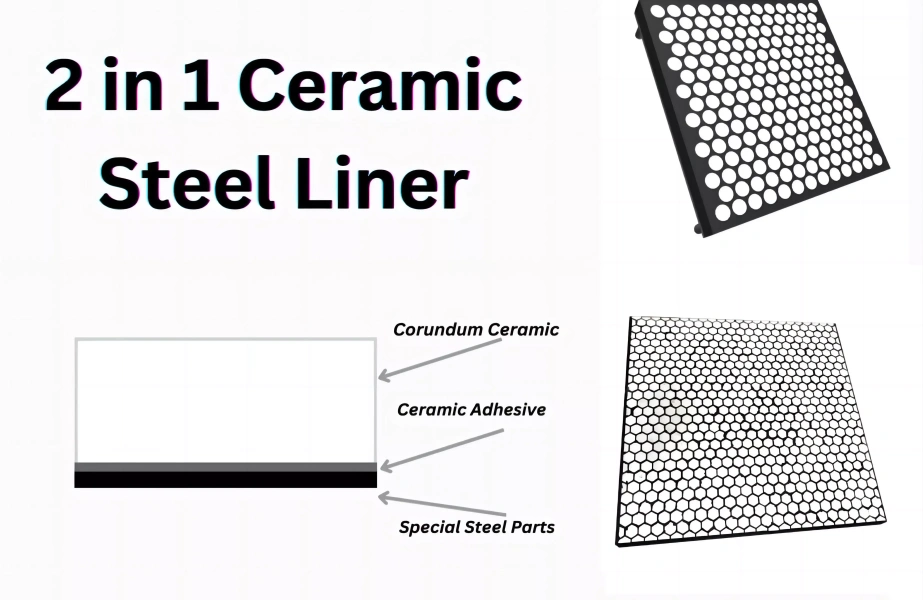

Product Structure:
The Wear-Resistant Ceramic Steel 2 in 1 Liners directly adheres toughened wear-resistant ceramic onto a steel plate using high-strength organic or inorganic adhesives with a maximum tolerance of 350℃. The steel plate is affixed with countersunk bolts for equipment connection. It features an anti-impact and wear-resistant layer, effectively addressing equipment wear during bulk material transportation. Primarily designed for material conveying equipment in room temperature environments, it withstands the impact of bulk materials.
Product Characteristics:
Wear Resistance: Boasts high hardness and exceptional wear resistance.
Impact Resistance: Toughened ceramic prevents easy breakage and withstands the impact of large materials.
High-Temperature Resistance: Operational within the range of 0℃ to 250℃, suitable for extended use through specialized installation methods like welding.
Convenient Installation and Replacement: Equipped with a complete liner, simplifying replacement, installation, and reducing post-sales service.
Reduced Maintenance: Exceptional wear resistance significantly lowers maintenance frequency, thereby cutting costs and labor.
Product Applications:
This type of wear-resistant Ceramic Steel 2 in 1 Liners serves as a prevalent wear-resistant lining in material conveying equipment, suitable for both room and high-temperature environments. Its specialized ceramic material effectively endures the impact of large materials.
Technical Specifications:
Density: 3.7~6 g/cm³
Rockwell Hardness (HRA): ≥85
Vicker Hardness (Hv10): ≥1100
Bending Strength: 300~800 MPa
Compressive Strength: 1200~3000 MPa
Wear Ability: ≤0.03 cm³
Fracture Toughness (KIC): ≥3.2 MPa/m²
Temperature Resistance: ≤750℃
Acid and Alkali Ability: pH 3~12
These specifications outline the suitability of the product for demanding environments, emphasizing its resistance to wear, impact, and high temperatures, crucial for optimal performance in material conveying equipment.
