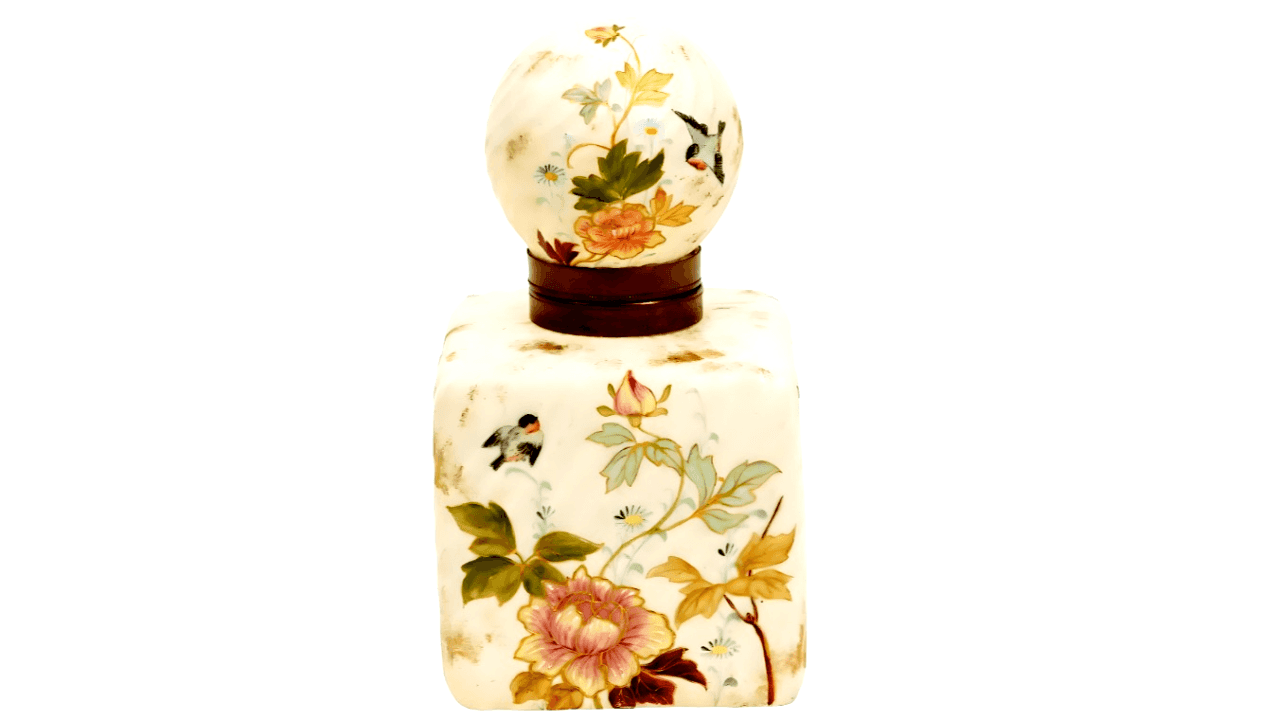

Ceramic inkjet printing has emerged as a revolutionary and advanced ceramic decoration technology in recent times. It has transformed the landscape of ceramic surface decoration by introducing a new level of precision and flexibility. In contrast to traditional screen and roller printing techniques, ceramic inkjet printing is characterized by its pressure - free, contactless, and plate - free nature. This unique set of features allows for the creation of natural and extremely clear patterns on ceramic surfaces. Moreover, it has the remarkable ability to perform non - contact “hover” printing, effectively overcoming the limitations imposed by flat surfaces in traditional methods. Additionally, its digital operation makes it simpler to execute, and the repeatability of patterns is outstanding, ensuring consistent quality in large - scale production. However, the full realization of these advantages hinges critically on the quality of the ceramic ink used. The development and preparation of high - quality ceramic ink are not just important but are the cornerstone of achieving excellent results in ceramic inkjet printing.
Ceramic ink is a complex formulation, typically composed of ceramic pigments (inorganic powders), solvents, dispersants, binders, surfactants, and various other additives. Each component plays a vital role in determining the overall performance of the ink, and to ensure optimal inkjet printing results, strict control over several key physicochemical properties is essential. These properties include pigment particle size, viscosity, surface tension, pH, and dispersion stability.
The particle size of the pigments in ceramic ink is a fundamental property that directly influences the print quality. If the pigment particles are too large, they pose a significant risk of clogging the nozzles of the inkjet printer. This can lead to disruptions in the printing process, uneven ink deposition, and ultimately, a poor - quality print. On the other hand, if the particles are overly fine, the color intensity of the printed pattern may be compromised. An ideal ceramic ink should possess a narrow and highly uniform particle size distribution.
The general requirement for the overall particle size of ceramic ink is that it should be less than 850 nm. The average particle size is preferably in the range of 200 - 300 nm. To accurately measure the particle size distribution, a laser particle size analyzer is commonly used. This sophisticated instrument works on the principle of light scattering. When a laser beam is directed at the ink sample, the particles in the ink scatter the light, and the angle and intensity of the scattered light are analyzed to determine the size and distribution of the particles.
Viscosity is another crucial property of ceramic ink as it has a profound impact on multiple aspects of the printing process, including the flow of the ink, its dispersion within the inkjet system, and the performance of the nozzle. If the viscosity of the ink is too low, it can cause ink leakage from the nozzle. This not only leads to wastage of ink but also results in an unstable printing process, with inconsistent droplet formation and deposition. Conversely, if the viscosity is too high, it can cause the nozzles to clog, preventing the smooth flow of ink and disrupting the printing operation.
The viscosity requirement for ceramic ink can vary depending on the specific type of printer and the design of the inkjet head. In general, the viscosity should be in the range of 1 - 20 mPa·s. To accurately measure the viscosity, a rotational viscometer is used. This instrument typically operates under temperature - controlled conditions because viscosity is highly sensitive to temperature changes. By maintaining a constant temperature, the measured viscosity values are more reliable and representative of the ink's behavior during actual printing.
Dispersion stability refers to the ability of the pigment particles in the ceramic ink to remain uniformly dispersed within the ink matrix without settling or agglomerating during storage and use. A lack of dispersion stability can lead to the formation of clumps or aggregates of pigment particles, which can cause nozzle clogging and uneven color distribution in the printed patterns.
There are several methods to test the dispersion stability of ceramic ink. One common method is to measure the zeta potential. The zeta potential is a measure of the electrical potential at the slipping plane between the pigment particles and the surrounding liquid medium. A higher absolute value of zeta potential indicates greater electrostatic repulsion between the particles, which helps in maintaining their dispersion. Another method is to monitor the viscosity stability over time. If the viscosity of the ink changes significantly over a period, it may indicate that the pigment particles are aggregating. Additionally, the solid content of the ink can be measured at regular intervals. A decrease in solid content over time may suggest sedimentation of the pigment particles.
Surface tension is a property that affects several critical aspects of the printing process, such as droplet formation, wetting of the substrate by the ink, and the drying behavior of the ink on the substrate. When the ink is ejected from the nozzle, surface tension plays a crucial role in determining the shape and size of the droplets. A proper surface tension value ensures that the droplets are formed uniformly and are of the appropriate size for accurate printing.
On the substrate, the surface tension of the ink determines how well it spreads and adheres. If the surface tension is too high, the ink may not wet the substrate properly, resulting in poor adhesion and uneven coverage. On the other hand, if the surface tension is too low, the ink may spread too much, leading to blurred or distorted patterns.
To measure the surface tension of ceramic ink, a surface tensiometer is used. There are different types of surface tensiometers, such as the pendant drop method and the du Noüy ring method. In the pendant drop method, a drop of ink is formed at the end of a capillary tube, and the shape of the drop is analyzed to calculate the surface tension. The du Noüy ring method involves measuring the force required to pull a platinum ring from the surface of the ink, which is related to the surface tension.
The pH value of ceramic ink is an important parameter as it affects the surface charge of the pigment particles and their dispersion. Pigment particles in the ink can have different surface charges depending on the pH of the surrounding medium. An appropriate pH value helps in maintaining a stable dispersion by ensuring that the pigment particles have a consistent surface charge, which promotes electrostatic repulsion and prevents aggregation.
Moreover, extreme pH values can have a detrimental effect on the inkjet printer itself. Acidic or alkaline inks can corrode the inkjet heads, leading to a reduction in the printer's lifespan. Therefore, it is essential to control the pH value of the ceramic ink within an appropriate range to ensure both the stability of the ink and the longevity of the printer.

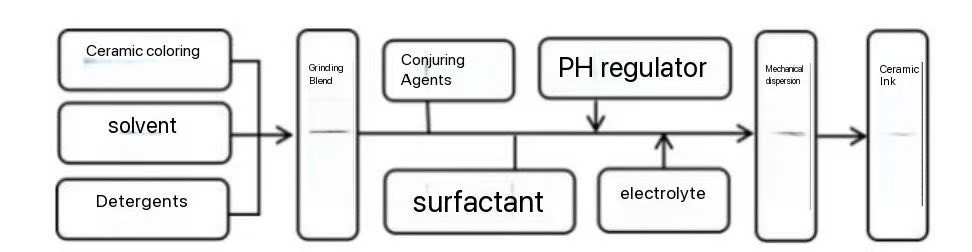

The grinding dispersion method is one of the most widely used techniques for the preparation of ceramic ink, especially in industrial production. Its popularity stems from its relatively low cost and simple operation. In this method, ceramic pigments, solvents, dispersants, and other additives are carefully mixed together. Planetary mills with zirconia beads are then used for the milling process. The zirconia beads, typically in the size range of 0.3 - 0.4 mm or 0.35 - 0.45 mm, are highly effective in reducing the particle size of the pigments.
During the milling process, the mixture is subjected to high - speed rotation and revolution in the planetary mill. The zirconia beads collide with the pigment particles, breaking them down into smaller sizes. This process continues until the desired sub - micron particle size is achieved. The sub - micron particle size is crucial for ensuring smooth inkjet printing and preventing nozzle clogging. The grinding dispersion method allows for a relatively large - scale production of ceramic ink, making it suitable for meeting the demands of the ceramic industry.
The inverse microemulsion method is a more advanced technique for preparing ceramic ink. This method makes use of W/O (water - in - oil) microemulsions that are formed using surfactants and co - surfactants. In an inverse microemulsion, tiny droplets of water (which contains the pigment) are dispersed within a continuous oil phase. The surfactants and co - surfactants play a crucial role in stabilizing these nanodroplets.
The advantage of this method is that it offers excellent long - term dispersion stability. The pigment nanodroplets are effectively shielded from each other by the surfactant layers, preventing sedimentation and agglomeration. This results in a ceramic ink that can be stored for extended periods without significant degradation in its performance. However, the inverse microemulsion method requires careful selection and control of the surfactants and co - surfactants, and the overall process can be more complex compared to the grinding dispersion method.
The sol - gel method is a highly sophisticated technique for preparing ceramic ink. This method involves the hydrolysis and condensation of precursors, which are usually metal alkoxides or salts. When these precursors are mixed with solvents and subjected to specific conditions, they undergo hydrolysis, where water molecules react with the metal alkoxides to form metal - hydroxide species. These species then undergo condensation reactions, leading to the formation of a 3D gel network.
During this process, stable nanocolloids are formed, which are the building blocks of the ceramic ink. The sol - gel method has the advantage of yielding highly stable inks. The 3D gel network helps in entrapping the pigment particles and providing a stable matrix for their dispersion. However, this method has several challenges. It requires strict control of various parameters such as temperature, pH, and the ratio of reactants. The process is also relatively complex, involving multiple steps and requiring careful monitoring. Additionally, the materials used, especially the metal alkoxides, can be costly, making the sol - gel method less cost - effective for large - scale production compared to the grinding dispersion method.
The quality of ceramic ink, which is defined by a combination of properties such as particle size, viscosity, surface tension, dispersion stability, and pH, has a direct and profound impact on the print performance in ceramic inkjet printing. While the inverse microemulsion and sol - gel methods offer superior stability in terms of pigment dispersion, the grinding dispersion method remains the most practical choice for large - scale production in the ceramic industry. Its simplicity, low cost, and relatively straightforward operation make it the workhorse for meeting the high - volume demands of the market.
However, continuous research and development efforts are still needed to optimize the preparation technology of ceramic ink. This includes further improving the efficiency of the grinding dispersion method, fine - tuning the parameters of the inverse microemulsion and sol - gel methods to make them more cost - effective, and exploring new materials and additives to enhance the overall performance of ceramic ink. By optimizing the preparation technology, it is possible to deliver high - performance inks that can fully meet the increasingly demanding requirements of modern ceramic inkjet printing. This, in turn, will drive the growth and innovation in the ceramic decoration industry, enabling the creation of more intricate, high - quality ceramic products.
