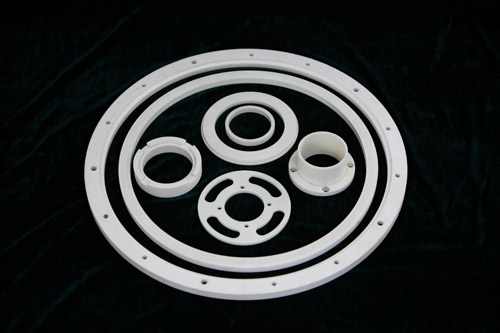

Zirconia ceramic sealing part (ZCS) is a component made from zirconia ceramic that is used to create a seal between two surfaces in a variety of industrial applications. The high strength, wear resistance, and chemical stability of zirconia ceramic make it an ideal material for sealing parts in applications where traditional seals may fail due to wear or chemical corrosion.
Zirconia ceramic sealing parts are commonly used in industries such as oil and gas, automotive, aerospace, and semiconductor manufacturing. They are used to create seals between components such as valves, pumps, and sensors, and can also be used as gaskets and O-rings.
One of the key advantages of using a Zirconia ceramic sealing part is its high resistance to wear and abrasion. The hardness and durability of zirconia ceramic make it ideal for creating seals in applications where traditional seals may wear down or fail over time.
Another advantage of using Zirconia ceramic sealing parts is their resistance to chemical corrosion. Zirconia ceramic is inert and non-reactive, making it suitable for use in applications where exposure to harsh chemicals or corrosive environments is a concern.
Zirconia ceramic sealing parts are also known for their dimensional stability and tight tolerance control, which ensures a precise fit and a reliable seal. This can result in improved equipment performance, reduced downtime, and improved product quality.
Zirconia ceramic sealing part (ZCS) are superior to other materials in chemistry corrosion proof, wear resistance, and thermo stability and so on. Therefore, it is widely used in bad conditions which metal or other materials could not be requirements.
Composition | Wt% | 94.8%ZrO2,5.2%Y2O3 |
Specific Density | g/cm3 | ≥6.0 |
Hardness (HV) | Kg/mm2 | ≥1250 |
Bending Strength | MPa | 1150 |
Fracture Toughness | MPa.m1/2 | ≥9 |
Grain Size | μm | <0.5 |
Elastic Modules | GPa | 200 |
Thermal Conductivity | W/(m.K) | 3 |
Thermal Expansion Coefficient (20-400℃) | ×10-6m/℃(20-400℃) | 9.6 |
