Zirconia part for sand mill is a component used in sand milling machines for grinding and milling materials such as minerals, pigments, and coatings. The zirconia part is made from zirconia ceramic, a high-strength and wear-resistant material that is ideal for use in grinding applications.
The Zirconia part for sand mill typically takes the form of grinding beads, cylinders, or disks that are used to break down and grind the materials being processed. The high wear resistance of zirconia ceramic makes it ideal for use in sand milling applications where the grinding media is exposed to high levels of stress and wear.
One of the key advantages of using a Zirconia part for sand mill is its ability to maintain a uniform size and shape during grinding. Zirconia ceramic is a dense and homogeneous material that resists chipping and cracking, ensuring consistent performance over time.
Another advantage of using Zirconia parts in sand mills is their resistance to corrosion and chemical attack. Zirconia ceramic is inert and non-reactive, making it suitable for use in a variety of chemical and industrial applications.
In addition to its high wear resistance and chemical stability, zirconia ceramic is also known for its high thermal stability and resistance to thermal shock. This makes it an ideal material for use in sand milling applications where the grinding media is exposed to high temperatures and rapid changes in temperature.

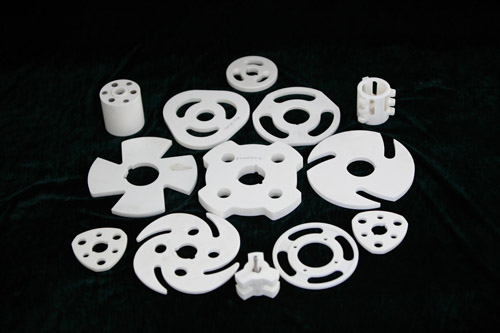

We can supply series of zirconia part for sand mill (ZPS) according to the customer design. Such as :Dispersible Disc, Grinder Impeller,Stator,Rotor,Cylinder Liner,Gland end Bracket,Gasket,Mixing Rod and so on.
Composition | Wt% | 94.8%ZrO2,5.2%Y2O3 |
Specific Density | g/cm3 | ≥6.0 |
Hardness (HV) | Kg/mm2 | ≥1250 |
Bending Strength | MPa | 1150 |
Fracture Toughness | MPa.m1/2 | ≥9 |
Grain Size | μm | <0.5 |
Elastic Modules | GPa | 200 |
Thermal Conductivity | W/(m.K) | 3 |
Thermal Expansion Coefficient (20-400℃) | ×10-6m/℃(20-400℃) | 9.6 |
We will contact you as soon as possible!
Zirconia Part For Sand Mill
Submit your demand,
we will contact you ASAP.
Sanxin New Materials Co., Ltd. focus on producing and selling ceramic beads and parts such as grinding media, blasting beads, bearing ball, structure part, ceramic wear-resistant liners, Nanoparticles Nano Powder
