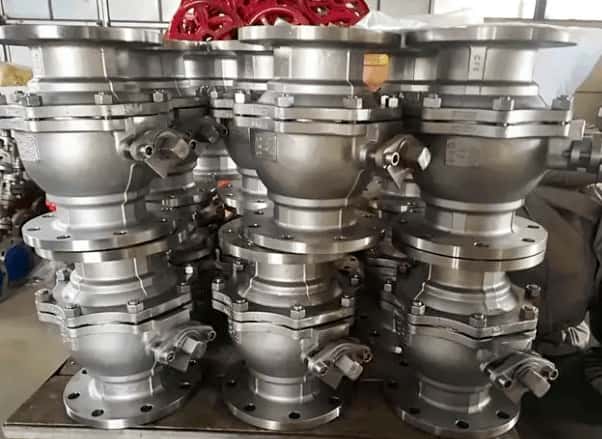

In the realm of industrial fluid control, the Zr702 zirconium ball valve has emerged as a highly efficient and reliable solution. Its unique combination of low flow resistance, rapid operation, excellent sealing performance, and durability make it an ideal choice for a wide range of applications, especially those involving high-temperature and highly corrosive media. This article provides an in-depth exploration of the Zr702 zirconium ball valve, covering its product features, technical specifications, materials, pressure and diameter ranges, drive modes, and applicable media.
The Zr702 zirconium ball valve is renowned for its minimal fluid resistance, making it one of the most efficient valve types available. Even in reduced-diameter configurations, the flow resistance remains remarkably low. This characteristic is attributed to the valve's streamlined internal design, which allows fluid to pass through with minimal obstruction. Compared to other valve types, such as globe valves, the Zr702 zirconium ball valve significantly reduces energy consumption and operational costs while enhancing overall system efficiency.
The operation of the Zr702 zirconium ball valve is exceptionally swift. A mere 90-degree rotation of the valve body is sufficient to transition between fully open and fully closed positions. This rapid action is crucial in applications where quick response times are essential, such as emergency shutdowns in natural gas pipelines or precise control in manufacturing processes. The ability to achieve full closure within seconds ensures safety and efficiency in critical situations.
The sealing mechanism of the Zr702 zirconium ball valve is designed to provide exceptional reliability. The valve seat, typically made from materials like polytetrafluoroethylene (PTFE), offers excellent flexibility and conforms closely to the spherical surface of the valve. This ensures a tight seal that prevents fluid leakage, even under high pressure. Additionally, the sealing force increases proportionally with the medium pressure, further enhancing the valve's leak-free performance. This feature is particularly beneficial in industries such as pharmaceuticals, food and beverage, and chemicals, where maintaining a sterile and contamination-free environment is paramount.
The valve stem of the Zr702 zirconium ball valve is engineered for long-term durability and reliability. During operation, the stem undergoes only a 90-degree rotational movement, which minimizes wear and tear on the packing seal. The back-seal design is pressure-responsive, meaning the sealing force increases with the medium pressure. This ensures that the valve stem remains leak-free even in challenging high-pressure and high-temperature environments, such as those found in thermal power plants.
The Zr702 zirconium ball valve is highly adaptable to modern industrial automation requirements. Its simple 90-degree rotational movement makes it easy to integrate with various actuation devices, including electric, pneumatic, and hydraulic actuators. This versatility allows for seamless integration into automated control systems, enabling real-time monitoring and adjustment of fluid flow. Remote control capabilities further enhance operational efficiency and safety, especially in hazardous environments where manual intervention is risky.
The internal passage of the Zr702 zirconium ball valve is designed to be smooth and flat, facilitating easy pigging operations. This feature is particularly important in pipeline systems that require regular maintenance to remove deposits and ensure optimal flow capacity. The smooth passage allows cleaning devices to pass through the valve without obstruction, reducing maintenance time and costs while maintaining the integrity of the pipeline system.
The Zr702 zirconium ball valve is designed in strict accordance with a set of domestic and international standards, ensuring its reliability, safety, and compatibility with various industrial applications. These standards include:
GB/T12237: A Chinese national standard that provides detailed technical requirements for the design, structural length, and connection dimensions of flanged and butt-welded steel ball valves.
API6D: An American Petroleum Institute standard tailored for pipeline valves, covering design, manufacturing, testing, and installation requirements, with a focus on the oil and gas industry.
ASME B16.34: An American Society of Mechanical Engineers standard that addresses the pressure-temperature ratings, materials, and structural dimensions of valves, ensuring their safe and reliable operation.
The structural length of the Zr702 zirconium ball valve complies with the following standards:
GB/T12221: A Chinese standard that defines the structural length dimensions for metal valves, ensuring easy integration into pipeline systems.
API6D: This standard also contributes to the standardization of structural length, taking into account the specific requirements of the oil and gas industry.
ASME B16.10: Provides guidelines for the structural dimensions of valves, ensuring compatibility with a wide range of industrial applications.
The Zr702 zirconium ball valve offers a wide range of flange connection options to meet diverse pipeline system requirements. Available flange standards include:
HG (Chemical Industry Standard of China)
GB (Chinese National Standard)
JB (Chinese Mechanical Industry Standard)
API (American Petroleum Institute Standard)
ANSI (American National Standards Institute)
ISO (International Organization for Standardization)
BS (British Standard)
DIN (German Industrial Standard)
NF (French Standard)
JIS (Japanese Industrial Standard)
These multiple flange options ensure that the valve can be seamlessly integrated into pipeline systems worldwide, regardless of their origin or the standards they follow.
The Zr702 zirconium ball valve undergoes rigorous testing to ensure it meets the highest quality and performance requirements. Testing standards include:
JB/T9092: Specifies inspection and testing methods for valves, including shell tests and sealing tests to verify the valve's integrity and sealing effectiveness.
GB/T13927: A Chinese general valve pressure-testing standard that details test pressure, test time, and test medium requirements, ensuring realistic operating conditions.
API6D and API598: These American Petroleum Institute standards provide comprehensive testing requirements, including pressure-temperature cycling tests, fire-resistance tests, and environmental tests, to ensure the valve's reliability in various working conditions.
The valve body and bonnet of the Zr702 zirconium ball valve are primarily made from high-performance materials such as:
Zr702: A high-purity commercial-grade zirconium material known for its exceptional corrosion resistance, making it suitable for harsh chemical environments.
Zr705: An alloy based on Zr702, enhanced with alloying elements like tin to improve strength and corrosion resistance. It is ideal for applications requiring higher mechanical strength.
702C and 705C: These materials undergo special treatments to enhance machinability, heat resistance, or other specific properties, allowing the valve to meet diverse operational needs.
These materials ensure the long-term integrity and reliability of the valve structure, even in the most challenging industrial environments.
The sphere and valve stem are also made from Zr702-based materials, ensuring excellent wear resistance, corrosion resistance, and mechanical strength. These components are designed to withstand repeated opening and closing operations and the erosive effects of flowing fluids, maintaining the valve's sealing performance and extending its service life.
The seal rings of the Zr702 zirconium ball valve are available in various materials to suit different applications:
PTFE (Polytetrafluoroethylene): Known for its excellent chemical stability, low friction coefficient, and corrosion resistance, PTFE is widely used for general applications.
RPTFE (Reinforced Polytetrafluoroethylene): Enhanced with materials like glass or carbon fibers, RPTFE offers improved strength and wear resistance, making it suitable for high-pressure or high-temperature environments.
PPL (Poly(p-phenylene)): Provides excellent high-temperature resistance and chemical stability, ideal for applications involving hot fluids.
PEEK (Polyetheretherketone): A high-performance engineering plastic with superior mechanical properties, corrosion resistance, and high-temperature resistance, suitable for extreme working conditions.
The Zr702 zirconium ball valve offers a wide range of pressure ratings, from PN1.6 to 10.0 MPa and Class 150 to 600Lb. This versatility allows the valve to be used in various pipeline systems with different pressure requirements, from low-pressure water supply systems to high-pressure natural gas transmission pipelines.
The nominal diameter range of the Zr702 zirconium ball valve is DN15 to DN250 (1/2" to 10"). This range covers a broad spectrum of applications, from small-scale instrumentation pipelines to large-scale industrial pipelines in oil refineries and power plants.
The Zr702 zirconium ball valve is available in multiple drive modes to meet diverse operational needs:
The handwheel drive mode is the simplest and most cost-effective option. It is ideal for applications where manual operation is preferred, such as in small-scale industrial plants or residential systems. The handwheel allows operators to directly control the valve's opening and closing, providing a straightforward solution for basic fluid control needs.
The worm gear drive mode is designed to provide higher torque output, making it suitable for larger valves that require more force to operate. This drive mechanism leverages the mechanical advantage of the worm gear system, allowing for smooth and controlled valve movement. It is particularly useful in high-pressure and large-diameter applications, such as in power plants or oil refineries, where precise control of fluid flow is essential.
Pneumatic drive mode is powered by compressed air, offering rapid and precise control. This mode is highly favored in industries where quick response times are critical, such as in food and beverage processing or chemical plants. Pneumatic valves can be easily integrated into automated control systems, allowing for remote monitoring and adjustment. The use of compressed air also makes it a clean and safe option, especially in environments where explosion-proof or hygienic conditions are required.
Hydraulic drive mode is characterized by its ability to generate extremely high forces, making it suitable for high-pressure and high-load applications. It is ideal for use in oil and gas pipelines, especially in subsea or high-pressure onshore installations. The hydraulic system uses hydraulic oil to transmit force, enabling the valve to operate smoothly even under demanding conditions. However, hydraulic systems require more complex infrastructure, including pumps, reservoirs, and hoses, which need to be carefully maintained to ensure optimal performance.
Electric drive mode offers the highest level of automation and integration capabilities. It can be easily connected to various control systems, from simple local control panels to complex distributed control systems (DCS) used in large-scale industrial complexes. Electric valves can be programmed to open and close based on specific process parameters, enhancing the efficiency and reliability of industrial operations. This drive mode is particularly useful in modern smart factories, where automation and remote control are essential for optimizing production processes.
The Zr702 zirconium ball valve is designed to handle a wide range of media, making it highly versatile for various industrial applications. Its key strengths lie in its ability to withstand high temperatures and highly corrosive environments. The valve is particularly suitable for the following types of media:
High-Temperature Fluids: The valve's construction from high-performance zirconium materials allows it to operate reliably in environments with elevated temperatures. This makes it ideal for applications in power plants, where steam and hot water are commonly used.
Corrosive Chemicals: The excellent corrosion resistance of zirconium materials ensures that the valve can handle aggressive chemicals without degradation. This is crucial in the chemical, pharmaceutical, and petrochemical industries, where the valve may be exposed to acids, alkalis, and other corrosive substances.
Gas and Liquid Hydrocarbons: The valve's robust design and reliable sealing performance make it suitable for use in oil and gas pipelines, where it can control the flow of crude oil, refined products, natural gas, and other hydrocarbons.
Food and Beverage Ingredients: The smooth internal passage and leak-free operation of the valve ensure that it meets the stringent hygiene requirements of the food and beverage industry. It can be used to control the flow of water, syrup, carbon dioxide, and other ingredients without contamination.
Pharmaceutical Fluids: In pharmaceutical manufacturing, the valve's ability to maintain a sterile environment and prevent contamination is essential. It can be used to handle various fluids, including those used in the production of injectable medications.
The Zr702 zirconium ball valve is available in a variety of models to meet different pressure and diameter requirements. Some of the commonly used models include:
Q41F-10Zr, Q41F-16Zr, Q41F-25Zr, Q41F-40Zr, Q41F-64Zr, Q41F-100Zr: These models are designed for metric pressure ratings ranging from PN1.6 to 10.0 MPa.
Q41F-150Lb(Zr), Q41F-300Lb(Zr), Q41F-600Lb(Zr): These models are designed for ANSI pressure classes ranging from 150 to 600Lb.
Q341F-16Zr, Q341F-25Zr, Q341F-40Zr, Q341F-64Zr, Q341F-100Zr: These models are also available for metric pressure ratings and offer additional options for specific applications.
These models cover a wide range of nominal diameters from DN15 to DN250 (1/2" to 10"), ensuring that the valve can be tailored to fit various pipeline systems and operational needs.
The Zr702 zirconium ball valve is a versatile and highly reliable solution for fluid control in a wide range of industrial applications. Its low flow resistance, rapid operation, superior sealing performance, and durability make it an ideal choice for environments where efficiency, safety, and longevity are paramount. With its broad range of technical specifications, materials, and drive modes, the Zr702 zirconium ball valve can be customized to meet diverse operational needs, from small-scale systems to large industrial complexes. Whether used in the chemical, pharmaceutical, food and beverage, or oil and gas industries, the Zr702 zirconium ball valve ensures optimal performance and reliability, making it a valuable asset in modern industrial operations.
